Metal Glazed Resistor

Metal Glazed Resistor

Send Inquiry

Over the years of dedication, we have been a prominent manufacturer of Metal Glazed Resistor to our widely spread clients. It is precisely built using fine quality raw material and ultra modern machinery at our unit in conformity with the set industrial norms and standards. Metal Glazed Resistor has gained us huge appreciation from our clients for its quality, performance and easy installation for use in different industrial sectors. We offer this at highly pocket- friendly prices in the market.



 Electrical Specifications:-

Type DIMENSIONS(mm) Max. Working Voltage Max. Overload Voltage Dielectric withstanding Voltage Surge withstanding voltage Resistance range
D L d

H
TMGR-25 2.4±0.2 6.5±0.5 0.56±0.05 26 1150V 6.25*Pn (voltage not more than 2×limiting voltage 700V 100K-1M:3000V
1M1-6M2:4000V
≥6M8:6000V
100K-15MΩ(±5% & ±1%)
TMGR-50 3.5±0.5 9.0±1 0.56±0.05 26 2500V 6.25*Pn (voltage not more than 2×limiting voltage 700V 100K-1M:4000V
1M1-6M2:5000V
≥6M8:8000V
100K-33MΩ(±5% & ±1%)
TMGR-100 4.5±0.5 12±1 0.75±0.05 26 7000V 6.25*Pn (voltage not more than 2×limiting voltage


700V 100K-1M:5000V
1M1-6M2:6000V
≥6M8:9000V
100K-68MΩ(±5% & ±1%)
TMGR-200 5.5±0.5 16±1 0.75±0.05 28 8000V 6.25*Pn (voltage not more than 2×limiting voltage

700V 100K-1M:8000V
1M1-6M2:9000V
≥6M8:10000V
±1%:100KΩ To 1MΩ
±5%:1KΩ
To 33MΩ



Temperature Coefficient:-

VALUE TCR(PPM/⁰C
100KΩ-22MΩ(±5% & ±1%) ≤±200×10ˉ⁶K
100KΩ-38MΩ(±5% & ±1%) ≤±200×10ˉ⁶K
100KΩ-68MΩ(±5% & ±1%) ≤±200×10ˉ⁶K



Color Code Marking:-

COLOR DIGITAL VALUE MULTIPLIER TOLERANCE
Black 0 1 0
Brown 1 10 0
Red 2 100 +/-2%
Orange 3 1k
Yellow 4 10k +/-5%
Green 5 100k
Blue 6
Violet 7
Grey 8   +/-10%
White 9
Gold 0 0.1
Silver 0 0.01

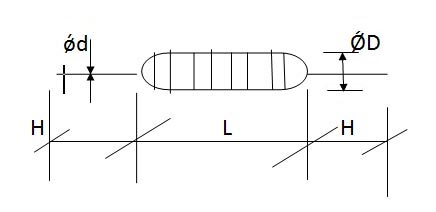

Diagram

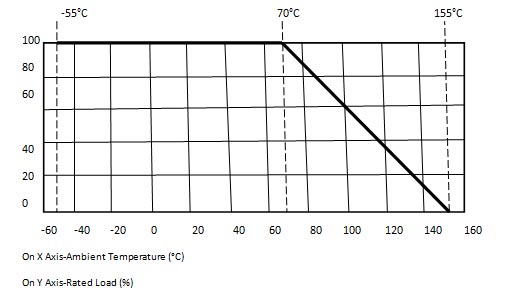

Derating Curve

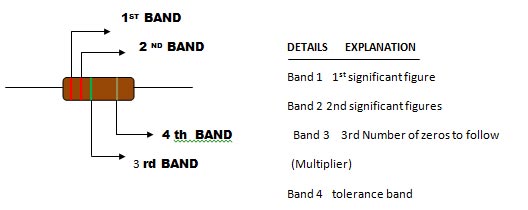

Color Code Marking
