Metal Oxide Resistor

Metal Oxide Resistor

Send Inquiry

We are a renowned manufacturer of Metal Oxide Resistor to our highly valued clients. Our team has designed for use in different industrial sectors for varied applications. We use utmost quality material for its making at our unit using thorough knowledge of the experts. This resistor is inspected on diverse parameters to ensure adherence with the prevailing international norms and standards. Metal Oxide Resistor is hence acknowledged by our customers in both domestic as well as overseas clients among our competitors.



 Electrical Specifications:-

TYPE Rated Power L(in mm) D(in mm) d(in mm) H(in mm) Max working voltage Max overload voltage Range
TRO 50 0.50W 9.0 +/-1.0 3.5 +/-0.5 0.56+/- 0.05 26 Min. 350 700 1 Ω-2.2MΩ
TRO 100 1W 12 +/-1.0 4.5 +/-0.5 0.70 +/- 0.05 26 Min. 500 1000 1 Ω-2.2MΩ
TRO 200 2W 16 +/-1.0 5.5 +/-1 0.70 +/- 0.05 26 Min. 500 1000 1 Ω-2.2MΩ
TRO300M 3W 16 +/-1.0 5.5 +/-1 0.70 +/- 0.05 30Min 500 1000 1 Ω-2.2MΩ



Temperature Coefficient:-

VALUE TCR(PPM/⁰C
TRO50M  1 -1M +/-350PPM
TRO100M 1 -1M +/350PPM
TRO200M 1 -1M +/350PPM
TRO300M 1 -1M +/350PPM



Color Code Marking:-

COLOR DIGITAL VALUE MULTIPLIER TOLERANCE
Black 0 1 0
Brown 1 10 0
Red 2 100 +/-2%
Orange 3 1k
Yellow 4 10k +/-5%
Green 5 100k
Blue 6
Violet 7
Grey 8   +/-10%
White 9
Gold 0 0.1
Silver 0 0.01



Packing Details:-

  • Qty . 100 Nos. /bags for all above sizes.
  • Qty.2500 Nos. for TRO50
  • Qty.1000 Nos. for TRO100,TRO200 &300M

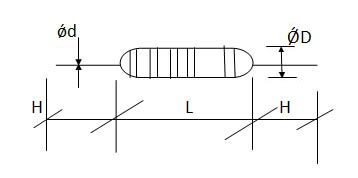

Diagram

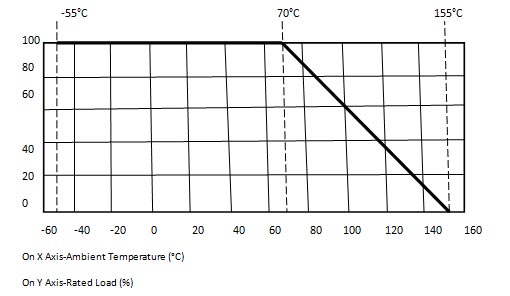

Derating Curve


Color Code Marking
